Abstract:

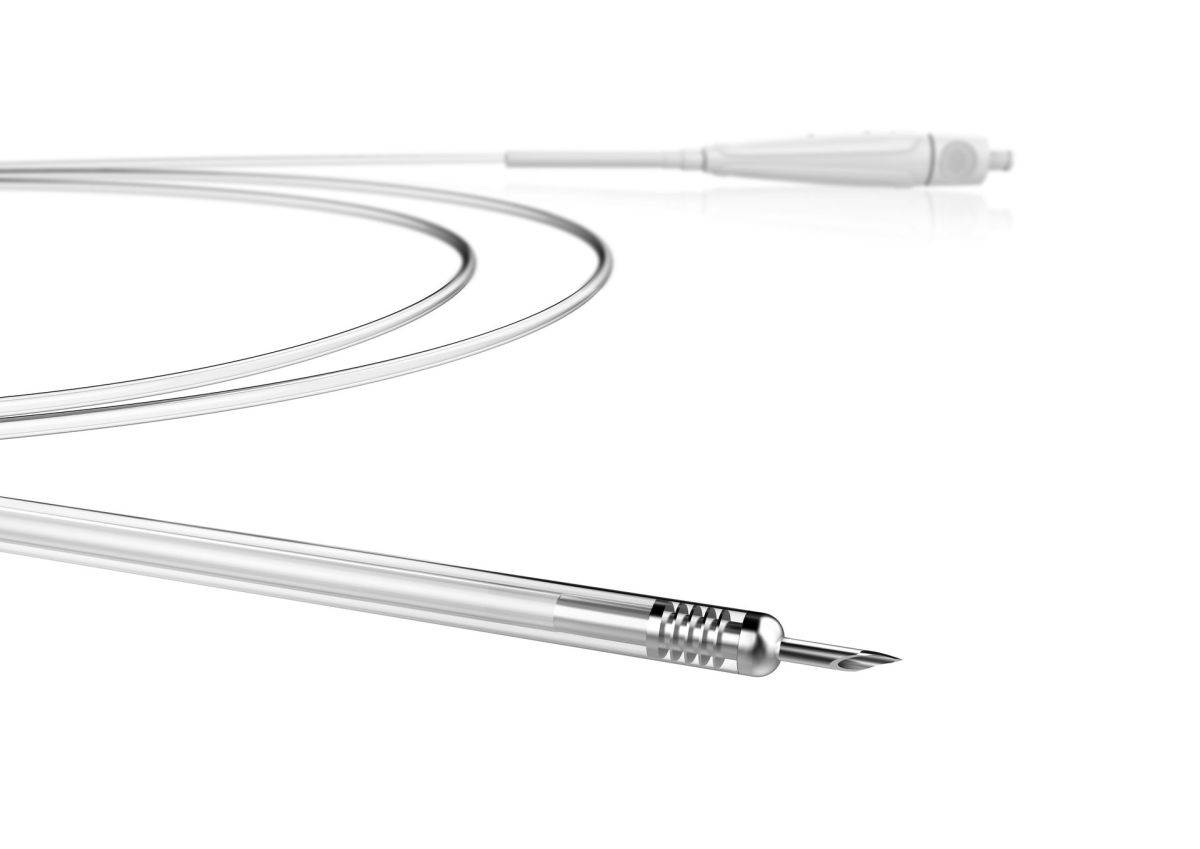

Jiuhong Medical Instrument Co.,Ltd is one of the best injection needle, endoscopy injection needle, disposable injection needle, sclerotherapy needles manufacturers and also a professional such supplier in China, please feel free to contact us.
Intended use
Indications for endoscopy to introduce a sclerosing agent or vasoconstrictor into selected sites to control actual or potential bleeding lesions in the digestive system; and the injection of saline to aid in Endoscopic Mucosal Resection (EMR), polypectomy procedures and to control non-variceal hemorrhage.
Features
Innovational design of metallic tip, efficiently avoid damage to catheter and working channel.
Rigid and super-lubricant catheter, easier to pass through the working channel.
Unique needle section design, with suitable sharpness and easier for puncture.
Ergonomic handle design, easier to operate.
Specifications
| Model |
O.D. (mm) |
WorkingLength (mm) |
Needle size (diameter/ length) |
Endoscope Channel (mm) |
| VDK-IN-18-120-2205-A |
1.8 |
1200 |
22G, 5mm |
≥2.0 |
| VDK-IN-18-180-1904-A |
1.8 |
1800 |
19G, 4mm |
≥2.0 |
| VDK-IN-18-180-1905-A |
1.8 |
1800 |
19G, 5mm |
≥2.0 |
| VDK-IN-18-180-1906-A |
1.8 |
1800 |
19G, 6mm |
≥2.0 |
| VDK-IN-18-180-2204-A |
1.8 |
1800 |
22G, 4mm |
≥2.0 |
| VDK-IN-18-180-2205-A |
1.8 |
1800 |
22G, 5mm |
≥2.0 |
| VDK-IN-18-180-2206-A |
1.8 |
1800 |
22G, 6mm |
≥2.0 |
| VDK-IN-18-180-2304-A |
1.8 |
1800 |
23G, 4mm |
≥2.0 |
| VDK-IN-18-180-2305-A |
1.8 |
1800 |
23G, 5mm |
≥2.0 |
| VDK-IN-18-180-2306-A |
1.8 |
1800 |
23G, 6mm |
≥2.0 |
| VDK-IN-18-180-2504-A |
1.8 |
1800 |
25G, 4mm |
≥2.0 |
| VDK-IN-18-180-2505-A |
1.8 |
1800 |
25G, 5mm |
≥2.0 |
| VDK-IN-18-180-2506-A |
1.8 |
1800 |
25G, 6mm |
≥2.0 |
| VDK-IN-23-180-1904-A |
2.3 |
2300 |
19G, 4mm |
≥2.8 |
| VDK-IN-23-180-1905-A |
2.3 |
2300 |
19G, 5mm |
≥2.8 |
| VDK-IN-23-180-1906-A |
2.3 |
2300 |
19G, 6mm |
≥2.8 |
| VDK-IN-23-180-2204-A |
2.3 |
2300 |
22G, 4mm |
≥2.8 |
| VDK-IN-23-180-2205-A |
2.3 |
2300 |
22G, 5mm |
≥2.8 |
| VDK-IN-23-180-2206-A |
2.3 |
2300 |
22G, 6mm |
≥2.8 |
| VDK-IN-23-180-2304-A |
2.3 |
2300 |
23G, 4mm |
≥2.8 |
| VDK-IN-23-180-2305-A |
2.3 |
2300 |
23G, 5mm |
≥2.8 |
| VDK-IN-23-180-2306-A |
2.3 |
2300 |
23G, 6mm |
≥2.8 |
| VDK-IN-23-180-2504-A |
2.3 |
2300 |
25G, 4mm |
≥2.8 |
| VDK-IN-23-180-2505-A |
2.3 |
2300 |
25G, 5mm |
≥2.8 |
| VDK-IN-23-180-2506-A |
2.3 |
2300 |
25G, 6mm |
≥2.8 |
| VDK-IN-23-230-1904-A |
2.3 |
2300 |
19G, 4mm |
≥2.8 |
| VDK-IN-23-230-1905-A |
2.3 |
2300 |
19G, 5mm |
≥2.8 |
| VDK-IN-23-230-1906-A |
2.3 |
2300 |
19G, 6mm |
≥2.8 |
| VDK-IN-23-230-2204-A |
2.3 |
2300 |
22G, 4mm |
≥2.8 |
| VDK-IN-23-230-2205-A |
2.3 |
2300 |
22G, 5mm |
≥2.8 |
| VDK-IN-23-230-2206-A |
2.3 |
2300 |
22G, 6mm |
≥2.8 |
| VDK-IN-23-230-2304-A |
2.3 |
2300 |
23G, 4mm |
≥2.8 |
| VDK-IN-23-230-2305-A |
2.3 |
2300 |
23G, 5mm |
≥2.8 |
| VDK-IN-23-230-2306-A |
2.3 |
2300 |
23G, 6mm |
≥2.8 |
| VDK-IN-23-230-2504-A |
2.3 |
2300 |
25G, 4mm |
≥2.8 |
| VDK-IN-23-230-2505-A |
2.3 |
2300 |
25G, 5mm |
≥2.8 |
| VDK-IN-23-230-2506-A |
2.3 |
2300 |
25G, 6mm |
≥2.8 |
